2026 Far East NDT New Technology Forum
ZhiJiang Excellence Cup NDT New Competition Arena
Arena Challenge Announcement No.1-Competitive Arena for Radiographic Sensitivity of Tube-to-Tube Sheet Fillet Weld by Rod-anode X-ray Film Radiography
Issued on May 19, 2026
|
Arena Information
|
Arena Name: Competitive Arena for Radiographic Sensitivity of Tube-to-Tube Sheet Fillet Weld by Rod-anode X-ray Film Radiography
|
Arena Type: Competitive Arena
|
|||
|
Arena Host
|
Real Name: Zhou Qiming
|
Organization: Jiangsu Zhongte Chuangye Equipment Inspection Co., Ltd.
|
|||
|
Specimen Parameters
|
Material: Three high-fidelity sensitivity calibration test blocks with different specifications, materials and structures (see Appendix 1 and Appendix 2)
|
Specification and Dimension: See Appendix 1 and Appendix 2
|
Surface Condition: Machined surface
|
||
|
Restrictions and Conditions
|
Testing Method: Rod-anode X-ray film radiography
|
Testing Instrument: Rod-anode X-ray machine
|
Testing Technology: Film radiography by backward radiographic exposure
|
||
|
Maximum Number of Participants: ≤ 2 persons
|
Testing Layout: Radiographic film attached to the pipe orifice
|
Time Limit: ≤ 0.5h
|
|||
|
Evaluation Rules
|
·The winner shall be the participant who can identify the maximum number and the smallest size of flat-bottom hole images on the radiograph.
· If the minimum identifiable size of flat-bottom holes is the same but the quantity differs, the participant with more identifiable holes wins.
· If both the identifiable size and quantity of flat-bottom holes are identical, the participant with the clearest image of the smallest flat-bottom hole shall be the winner.
|
||||
|
Technical Difficulty Description
|
Challengers shall independently design the compensator and select testing parameters to conduct radiographic exposure on three types of high-fidelity sensitivity calibration test blocks for tube-to-tube sheet fillet welds.
All artificial defects on the test blocks shall be detected, including flat-bottom holes of Φ0.3 mm (hole diameter 0.3 mm, hole depth 0.3 mm).
|
||||
|
Defect Distribution of Test Blocks
|
· Test Block 1 (6-hole): 3 pcs of Φ0.3 mm flat-bottom holes and 3 pcs of Φ0.5 mm flat-bottom holes
· Test Block 2 (6-hole): 3 pcs of Φ0.3 mm flat-bottom holes and 3 pcs of Φ0.5 mm flat-bottom holes
· Test Block 3 (12-hole): 4 pcs each of Φ0.3 mm, Φ0.5 mm and Φ0.7 mm flat-bottom holes
|
||||
|
Participation Requirements
|
|
||||
|
Participation Notice
|
Challenge registration opens on May 20. Please contact the Competition Secretariat.
All challengers must complete the official registration of the 2026 Far East NDT New Technology Forum to obtain the challenge qualification.
|
||||
|
Contact Information
|
Contact Person: Zheng Shanpu
|
Mobile: 13905382089
|
Email: zhengshanpu_zjtj@163.com
|
||
|
You may contact Zheng Shanpu to join the WeChat group: 2026 Far East NDT New Competition Arena for registration, technical consultation and relevant event information.
|
|||||
|
|
|
|
|
|
|
Appendix 1 Parameters and Drawings of High-Fidelity Sensitivity Calibration Test Blocks

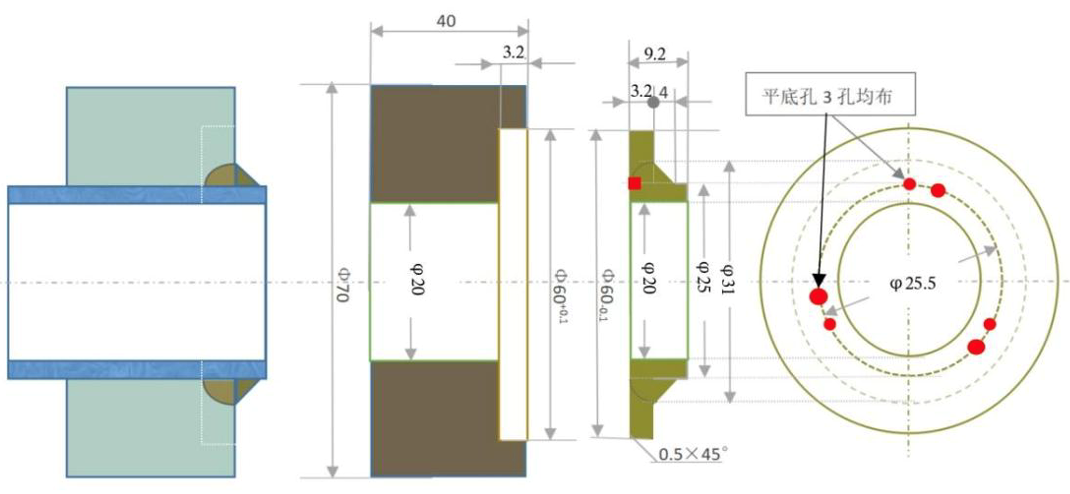

High-Fidelity Sensitivity Calibration Test Block 1 — Q-type Fillet Weld, Material: 10
Fillet weld structure: Φ25×2.5, groove depth 3.2, tube extension length 6, material: 10
6-hole high-fidelity sensitivity calibration test block，Flat-bottom hole 1: Φ0.5; Flat-bottom hole 2: Φ0.3.

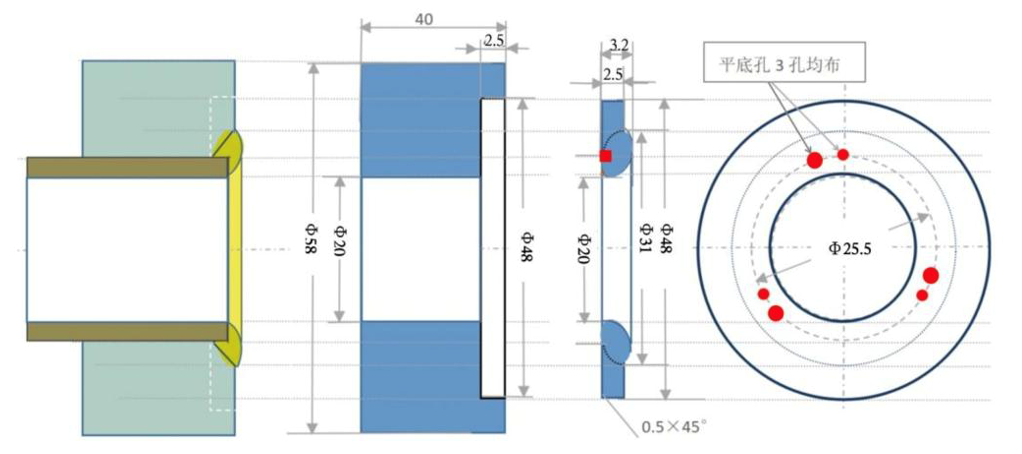

High-Fidelity Sensitivity Calibration Test Block 2 — D-type Fillet Weld, Material: 304
Fillet weld structure: Φ25×2.5, groove depth 2.5, tube extension length -1, material: 304.
6-hole high-fidelity sensitivity calibration test block,Flat-bottom hole 1: Φ0.3; Flat-bottom hole 2: Φ0.5.

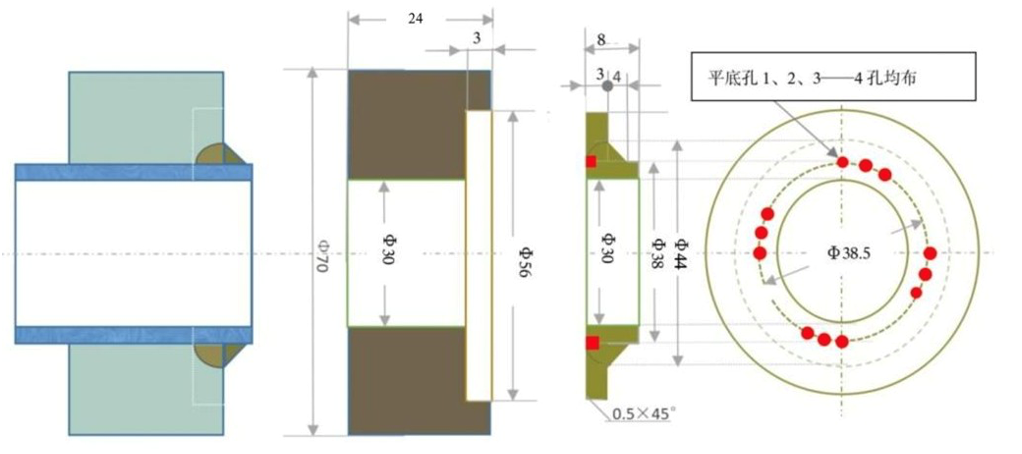

High-Fidelity Sensitivity Calibration Test Block 3 — Q-type Fillet Weld, Material: 304
Fillet weld structure: Φ38×4, groove depth 3, tube extension length 5, material: 304.
12-hole high-fidelity sensitivity calibration test block,Flat-bottom hole 1: Φ0.3; Flat-bottom hole 2: Φ0.5; Flat-bottom hole 3: Φ0.7.
Appendix 2 Photos of High-Fidelity Sensitivity Calibration Test Blocks

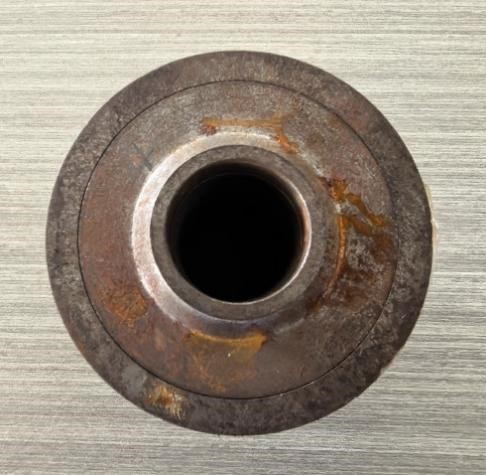

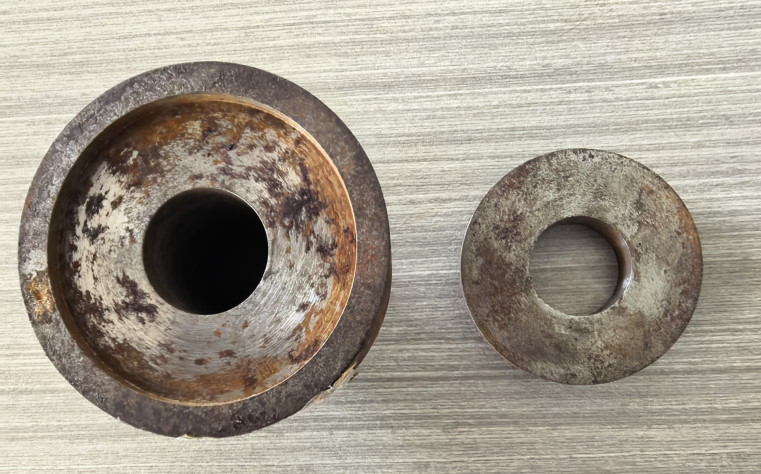

Photo of High-sensitivity Simulated Reference Test Block 1
.jpg)

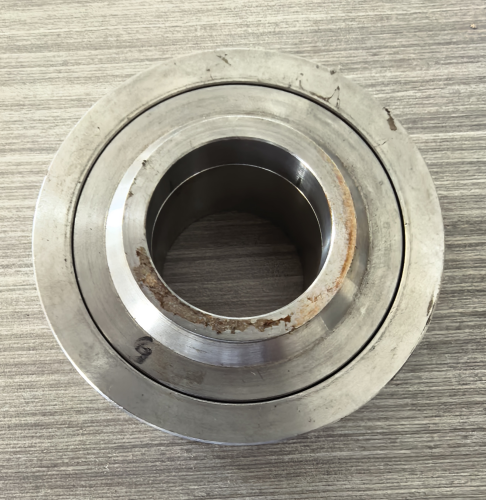

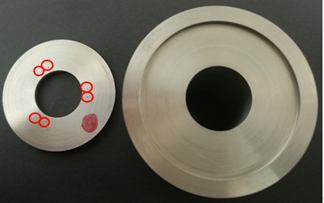

Photo of High-sensitivity Simulated Reference Test Block 2

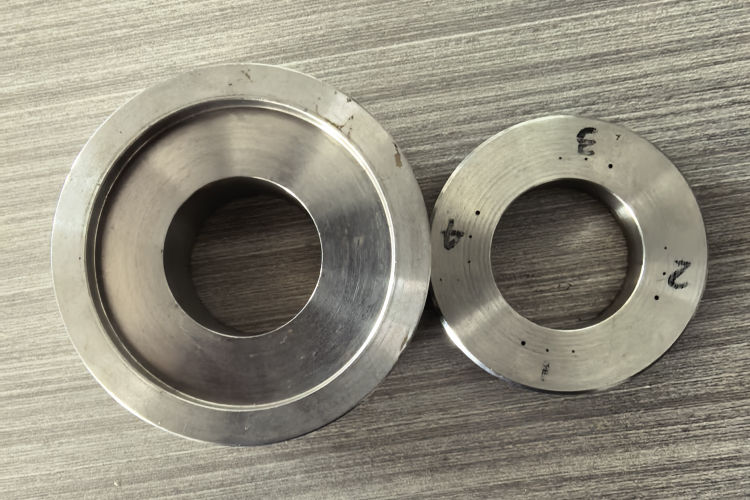

Photo of High-sensitivity Simulated Reference Test Block 3
